Product description

Laser engraver for every material

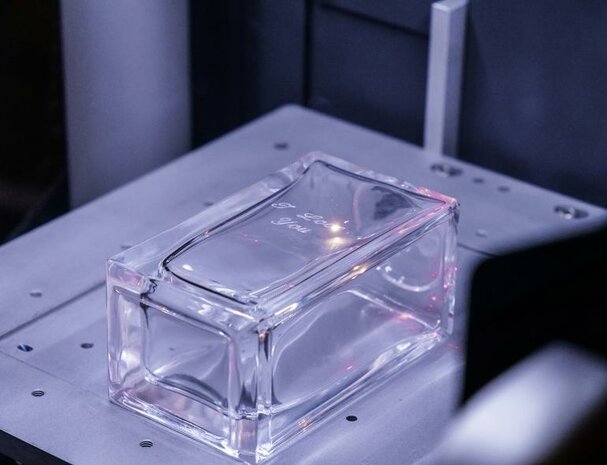

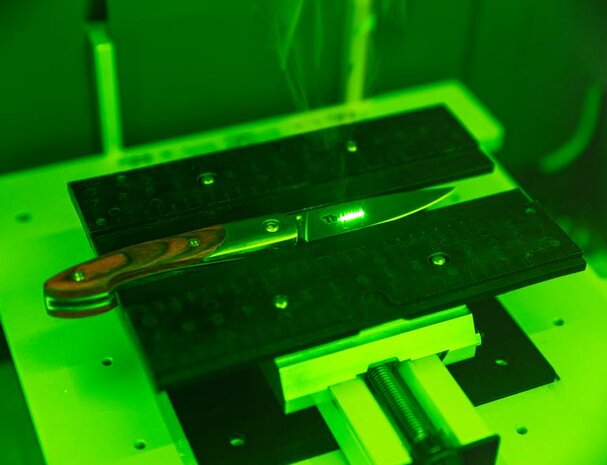

The WeLase is available with Fiber, Hybrid, Green or CO2 laser sources to achieve the best results on a wide range of materials. With many options and accessories, this small laser engraver can be configured to your specifics needs and items. For example: engrave the inside of rings made of precious metals, personalization of perfume bottles, mechanical parts in stainless steel, plastic containers, wood cutting boards or leather goods, and many other possibilities!

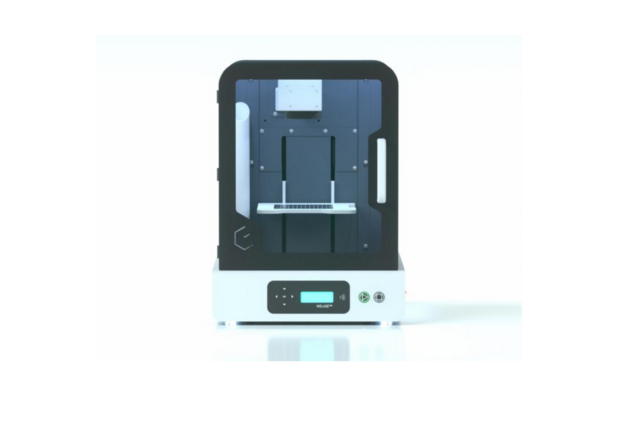

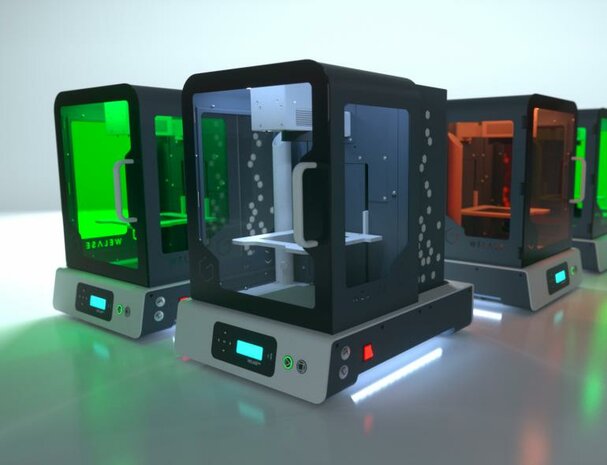

Compact laser marking machine

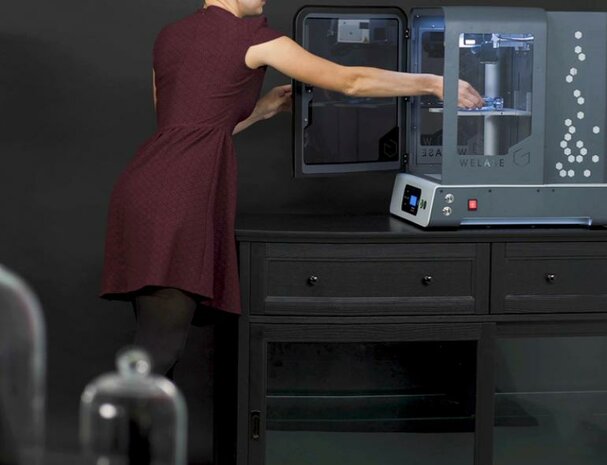

Small footprint, quiet, with a modern design and large viewing windows, this laser marking machine has been designed with high-durability in mind. Meeting the most stringent global safety regulations, Class 1 certification, WeLase is perfect for public and work-related environments.

High-end laser technology made simple

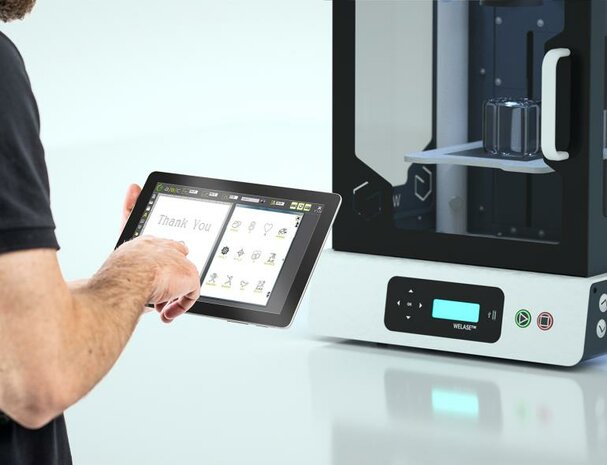

With our professional compact laser engraver, even without prior experience, you can benefit from our cutting-edge technology in an easy-to-use laser marking station. The WeLase™ comes with various features that fit your needs: a high-speed galvanometric marking head, an automatic height-adjustable for a better laser beam focus, previews of the proper positioning of your objects and plenty of positioning jigs. This small laser engraver is available with our range of software, from “no training required” (ABC, Catalog) to “expert” (Gravostyle™, Lasertrace).

Technical Specifications

Plug & Play machine: power it up and it is ready to run.
Easy to use and extensive support provided.

Integrated laser engraving assistance:
Preview mode: a red pointer projects on the item an exact simulation of the engraving.

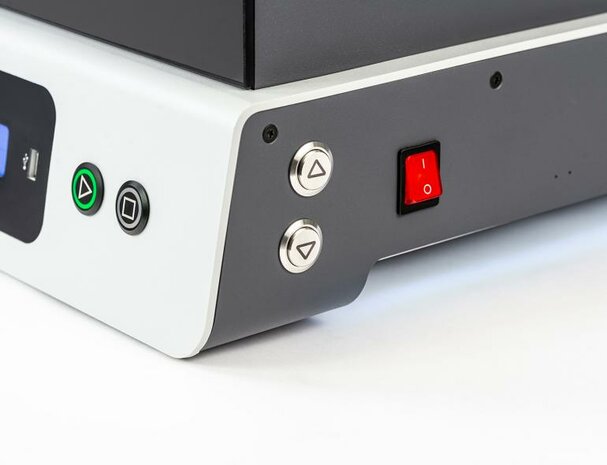

Manual mode: use the buttons to line up two red pointers and set the item to the correct lasering distance.
Programmable height adjustment: press the start button and the WeLase automatically adjusts to the programmed height and marks the part.
Built-in sensors: prevents laser operation while the door is opened, and instantly cuts-off power if the door is opened while the machine is in operation.
A special glass is used on the large viewing panels to ensure a quality and safe viewing experience. The WeLase can be used as standard in any store with total safety, and no need to build a cover or wear safety goggles.
Specialized packs:

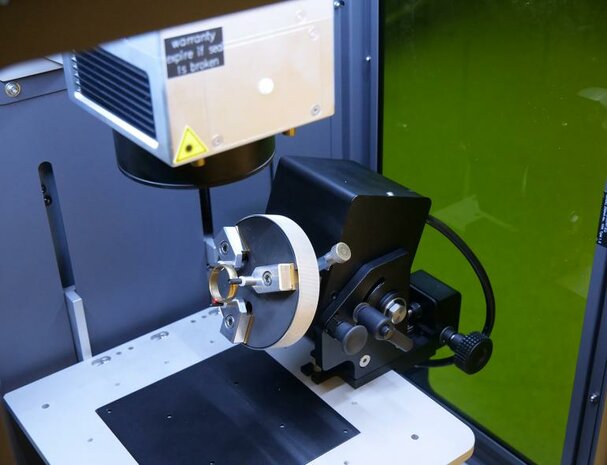

Pack jewel with rotary device:
The rotary device allows engraving and marking of the inside or outside surface of cylindrical parts and products. The jewel pack enhances the jeweler's use of the WeLase. Engrave inside of rings, outside of bracelets, do thin cuts of flat items, or any cylindrical part with our dedicated jewelry laser engraving machine.
Pack easy fix:
Precise and fixed repeatable positioning. Versatile: from a pen to a pipe with the same tool. Secure your object easily with the magnet system. No clamping, no chucks, instant item positioning.
Pack safe air:
Compact laser engraver exhaust for all environments. Exhaust the fumes and particles to keep the machine clean and accurate. Filters fumes and odors to create a safe and clean environment. Integrates easily with the WeLase. Quieter than other exhausts on the market and ideal for workshops and retail spaces. Exhaust filters are HEPA certified.
Class 1 laser, highest security possible:
Built-in sensors: prevents laser operation while the door is opened, and instantly cuts-off power if the door is opened while the machine is in operation.
A special glass is used on the large viewing panels to ensure a quality and safe viewing experience. The WeLase can be used as standard in any store with total safety, and no need to build a cover or wear safety goggles.
Specialized packs:
Pack jewel with rotary device:
The rotary device allows engraving and marking of the inside or outside surface of cylindrical parts and products. The jewel pack enhances the jeweler's use of the WeLase. Engrave inside of rings, outside of bracelets, do thin cuts of flat items, or any cylindrical part with our dedicated jewelry laser engraving machine.
Pack easy fix:
Precise and fixed repeatable positioning. Versatile: from a pen to a pipe with the same tool. Secure your object easily with the magnet system. No clamping, no chucks, instant item positioning.
Pack safe air:
Compact laser engraver exhaust for all environments. Exhaust the fumes and particles to keep the machine clean and accurate. Filters fumes and odors to create a safe and clean environment. Integrates easily with the WeLase. Quieter than other exhausts on the market and ideal for workshops and retail spaces. Exhaust filters are HEPA certified.

	WELASE CO2	WELASE FIBER	WELASE HYBRID	WELASE GREEN
Laser Source	CO2 10600 nm	Fiber 1064 nm	DPSS 1064 nm	DPSS 532 nm
Power	30W	20W / 30W	10W	5W
Power Peak	-	10 kW	60 kW	70 kW
Frequency	CW laser (Continous Wave)	30-60 Khz	10-100 Khz	10-100 Khz
Marking area - Available lenses	F150: 100 x 100 mm (3.9'' x 3.9'')	F160: 110 x 110 mm (4.3'' x 4.3'')	F160: 110 x 110 mm (4.3'' x 4.3'')	F160: 110 x 110 mm (4.3'' x 4.3'')
Z axis type	Motorized & Programmable	Motorized & Programmable	Motorized & Programmable	Motorized & Programmable
Marking speed	Up to 1500 mm/s (59,1 in/s)	Up to 3000 mm/s (118,1 in/s)	Up to 3000 mm/s (118,1 in/s)	Up to 3000 mm/s (118,1 in/s)
Max. object weight	3 kg (6.6 lbs)	3 kg (6.6 lbs)	3 kg (6.6 lbs)	3 kg (6.6 lbs)
Laser safety classification	Class 1 Door Closed / Class 2M door open (Aiming Diode)	Class 1 Door Closed / Class 2M door open (Aiming Diode)	Class 1 Door Closed / Class 2M door open (Aiming Diode)	Class 1 Door Closed / Class 2M door open (Aiming Diode)
Machine dimensions (L x W x H)	450 x 560 x 610 mm (17.7'' x 22'' x 24'')	450 x 560 x 610 mm (17.7'' x 22'' x 24'')	450 x 560 x 610 mm (17.7'' x 22'' x 24'')	450 x 560 x 610 mm (17.7'' x 22'' x 24'')
Power consumption rate	800W	800W	800W	800W
Rated voltage	100 - 240	100 - 240	100 - 240	100 - 240
Machine weight	44Kg (97 lbs)	42 kg (92,594 lbs)	39 Kg (85,980 lbs)	39 kg (85,980 lbs)
Max. object size (L x W x H)	340 x 200 x 180 mm (13.4'' x 7.9'' x 7.1'')	340 x 200 x 100 mm (13.4'' x 7.9'' x 3.9'')	340 x 200 x 100 mm (13.4'' x 7.9'' x 3.9'')	340 x 200 x 100 mm (13.4'' x 7.9'' x 3.9'')
Software	Lasertrace / Gravostyle™ / ABC / Gravotouch	Lasertrace / Gravostyle™ / ABC / Gravotouch	Lasertrace / Gravostyle™ / ABC / Gravotouch	Lasertrace / Gravostyle™ / ABC / Gravotouch
Operating Temperature	10-35°C	10-35°C	15-35°C	15-35°C
Humidity level	10-85%	10-85%	10-85%	10-85%
Z axis stroke	200 mm (7,9'')	200 mm (7,9'')	200 mm (7,9'')	200 mm (7,9'')
Door type	Manual	Manual	Manual	Manual
Communication interfaces (standard)	Ethernet TCP/IP, Wifi, USB	Ethernet TCP/IP, Wifi, USB	Ethernet TCP/IP, Wifi, USB	Ethernet TCP/IP, Wifi, USB
