- Professional quality printing and cutting
- Faster print speeds for optimum productivity
- Affordably priced to suit smaller businesses
- Easy to use – no printing experience required
- Compact size for environments with limited space
Your Story Starts Here
Featuring a selection of compact, easy-to-use and affordable solutions, the VersaSTUDIO range brings professional Roland DG quality to entrepreneurs and small businesses.
Print and Cut with
One Powerful, Compact Device

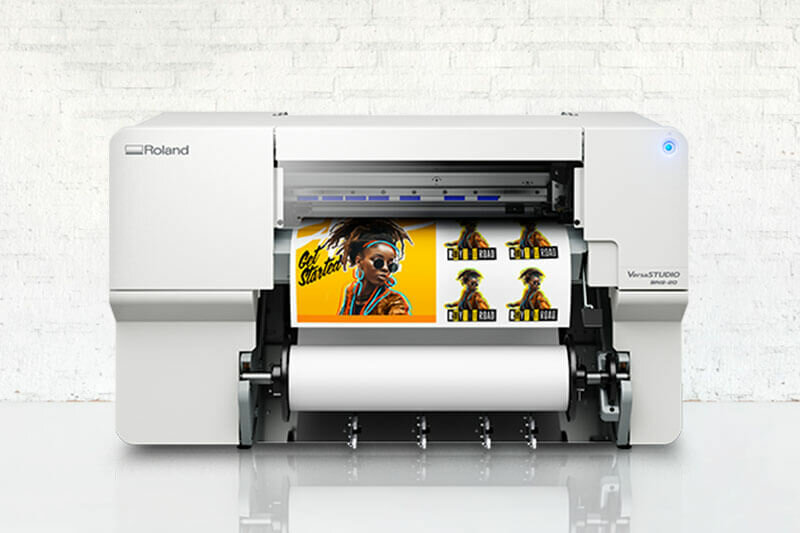

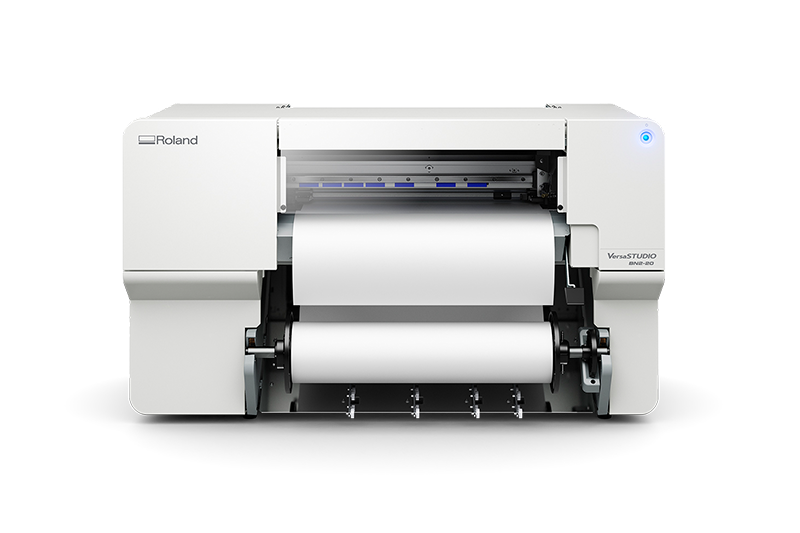

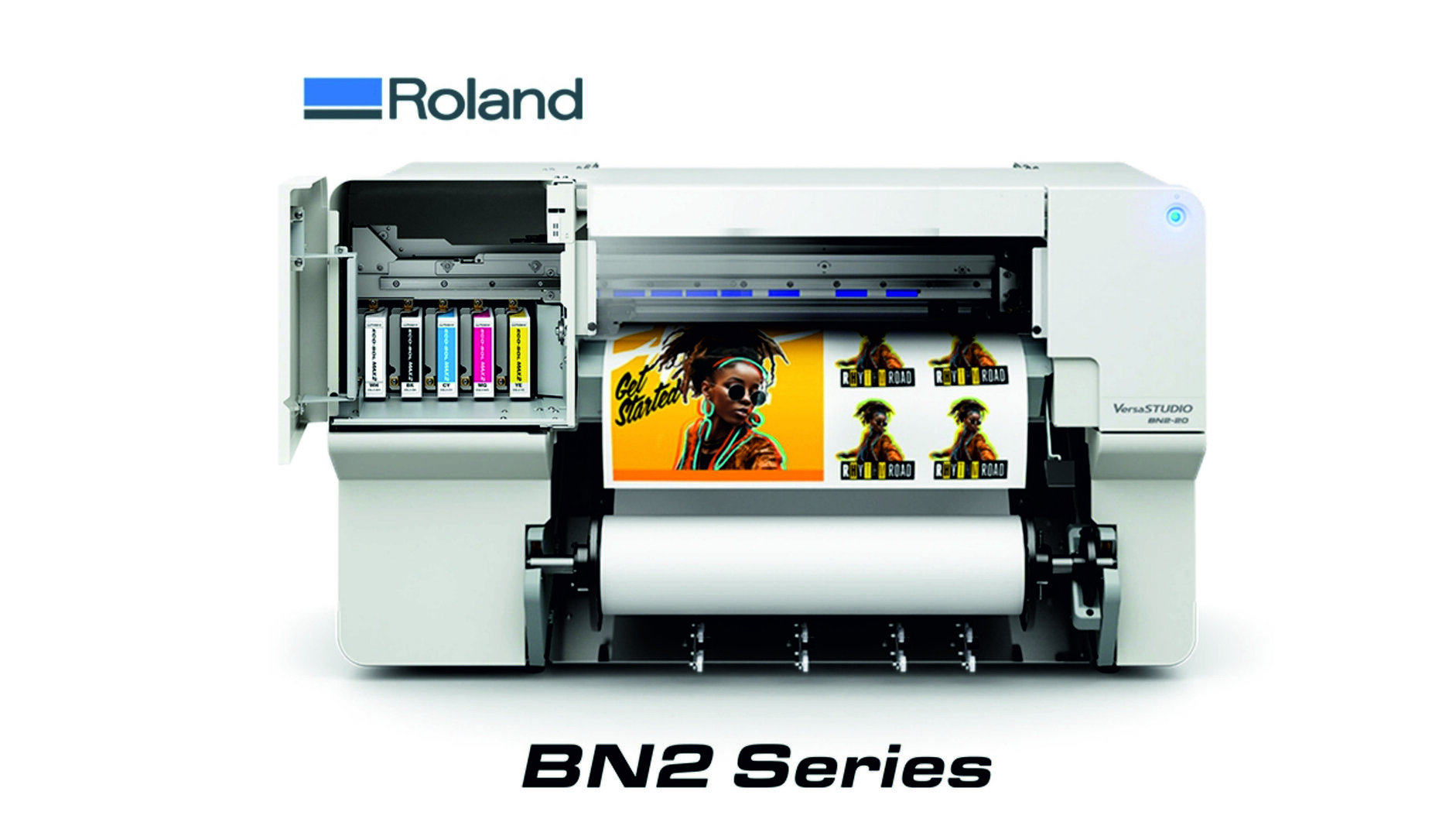

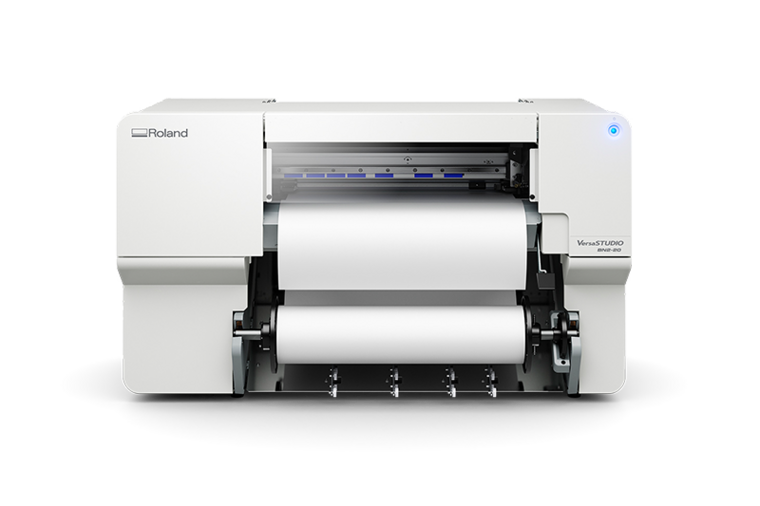

The BN2 series has the versatility to make creating everything from custom T-shirts and accessories to eye-catching signs, decals, and wall décor quick and simple – even for print novices.
Integrated Print and Cut
The BN2-20 and BN2-20A incorporate advanced print and cut technology that lets you print and contour cut graphics, even those with complex shapes, in one simple, seamless automated workflow.
This integrated print/cut functionality saves you considerable time and effort when creating graphics for a wide range of applications.
Professional Quality
BN2 series devices use high-definition print heads, inks and software trusted by professionals in graphic production worldwide.
Not only do these devices offer excellent colour reproduction and photographic quality, but they also render small letters and fine lines in great detail.
High Productivity
BN2 series devices deliver excellent printing and cutting speeds for such compact and affordable devices. This impressive print speed, combined with the ability to contour cut even complex shapes, allows you to optimise productivity and maximise profits.
Starter Price
Start-up businesses and smaller print providers can now achieve professional quality and performance, as well as legendary Roland DG reliability, at an affordable price.
With design and output software included, you have everything you need to take your operation to the next level.
Easy to Use
Innovative design and user features make these powerful desktop devices incredibly simple to operate. Even users with little or no printing experience can quickly begin producing professional-quality graphics with ease and precision.
Compact Size
BN2 series printer/cutters fit easily on most desktops, making them perfect for home-based businesses or smaller print shops.
operations, from media setup to maintenance, can be performed from the front of the printer, allowing for efficient operation in small spaces.
Specifications :
| BN2-20 |
| Printer Method |
Piezo ink-jet method |
| Dimensions |
1,069 x 617 x 622 mm (42.1 x 24.3 x 24.5 in.) |
| Weight |
62 kg (137 lb.) |
| Media |
Width |
150 to 515 mm (5.91 to 20.2 in.) |
| Thickness |
Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
| Roll outer diameter |
Max. 150 mm (5.9 in.) |
| Roll weight |
Max. 6 kg (13.2 lb.) |
| Core diameter |
76.2 mm (3 in.) or 50.8 mm (2 in.) |
| Printing/cutting width (*1) |
Max. 480 mm (18.89 in.) |
| Ink |
Type |
220 ml cartridge |
| Colors |

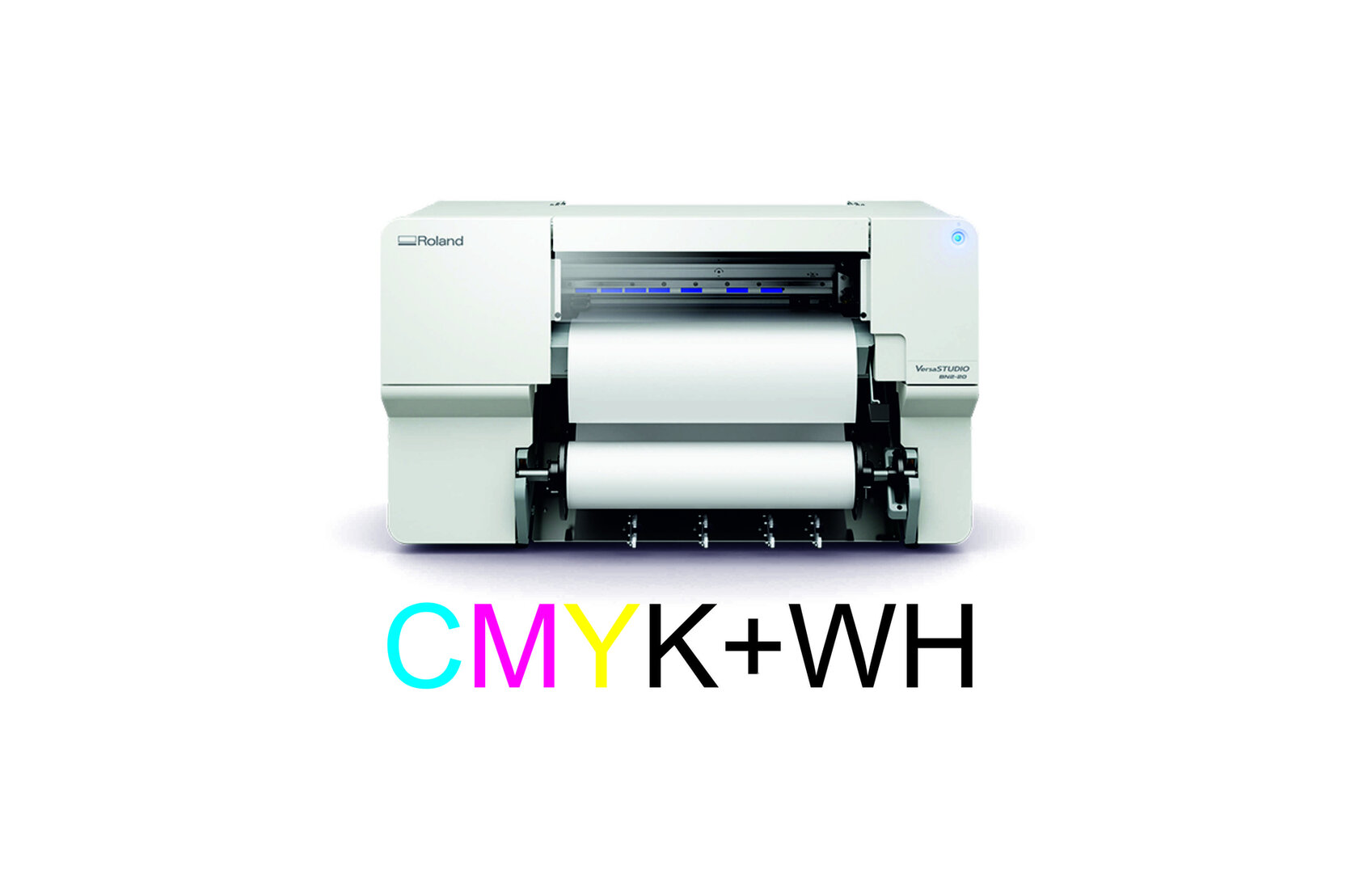

Cyan, Magenta, Yellow, Black, White |
| Resolution |
Max. 1,440 dpi |
| Cutting speed |
10 to 150 mm/s (0.39 to 5.9 in/s) |
| Connectivity |
Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving function |
Automatic sleep feature |
| Rated Input |
100-240 Va.c. 50/60 Hz 2.1 A |
| Power consumption |
During operation |
Approx. 185 W |
| Sleep Mode |
Approx. 27 W |
| Acoustic noise level |
During operation |
62 dB (A) or less |
| During standby |
60 dB (A) or less |
| Included items |
Power cord, media holders, replacement blade for separating knife, User’s Manual, software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect) |
