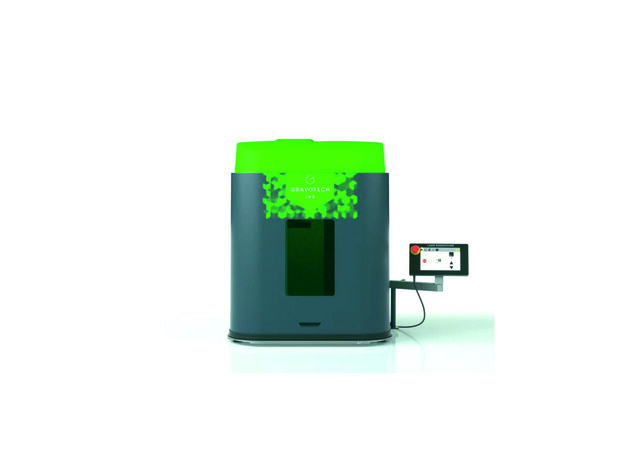

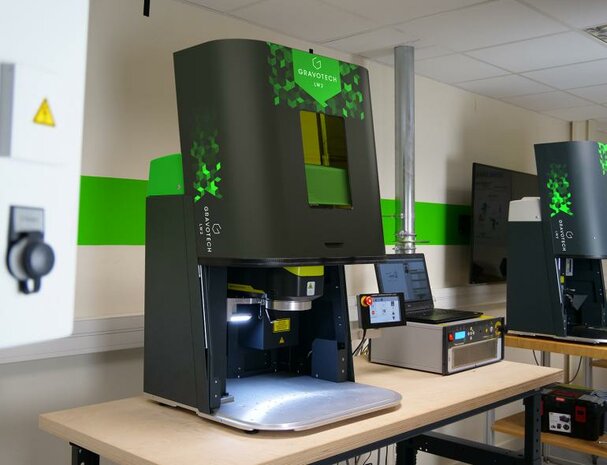

LW2: Fully automated laser marking station

• TOUCH SCREEN
  Just press the touch screen and the LW2 laser engraving machine enclosure takes care of the rest! The door closes automatically, the automated laser cutter is positioned at the right focus height, the marking is done in a few seconds and the door opens. This laser station does not require training. All you have to do is prepare your marking sheets and load them into the station via the USB port.

• COMPLETLY SAFE LASER MARKING SYSTEM
  The safety of the operator is our priority. The laser marking station is certified as class 1 laser products, meeting all safety requirements, allowing use in unrestricted environments: integrated fail-safe relay, protective glass, door closure security, emergency stop, door fitted with sensors and anti-pinch system, integrated extraction and filtration solution to protect users from dust and smoke. Mechanic and electronics are fully protected in a sealed box. Integrated alarms and controls.

• FLEXIBLE MARKING STATION
  Large marking area laser marking system with 3 sided door, marking of a large variety of parts, from small to big parts, from simple to complex shapes. LW2 laser engraving machine enclosure is compatible with all laser sources to offer you the possibility to mark on any type of material. We propose 2 software choices for the creation and control of your marking station to adapt to your needs and various and varied applications: Lasertrace & Laserstyle.

Technical Specifications

Motorized and programmable Z-axis
Part size up to 345mm high.

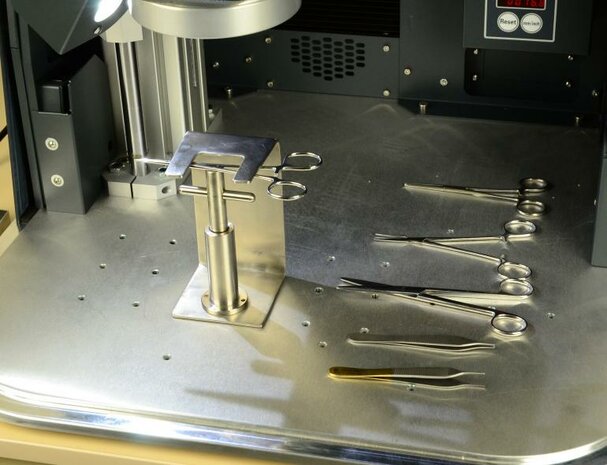

Spacious working area (L x W)
502 mm (19.7 in) x 477mm (18.7 in)
With mounting holes for accessories.

Automatic door
Opening / closing time: 2 sec

Certified Class 1, maximum safety

• Automatic door with sensors, anti-pinch and locking safety systems.
• Certified protective viewing glass (180 x 280 mm) for viewing markings without protective glasses.
• Emergency stop button.

General

Sources laser
Fiber, Hybrid, Green
Use rate
Fully automatic
Adapted for high use rate

Marking Capacity

Marking area max
205 x 205 mm (8.07 x 8.07 in)
Max object height
322 mm (12.7 in)
Object weight
25 kg (55 lbs)

Mass Marking

The LW2 offers a number of setting aids on the touch screen for individual use:

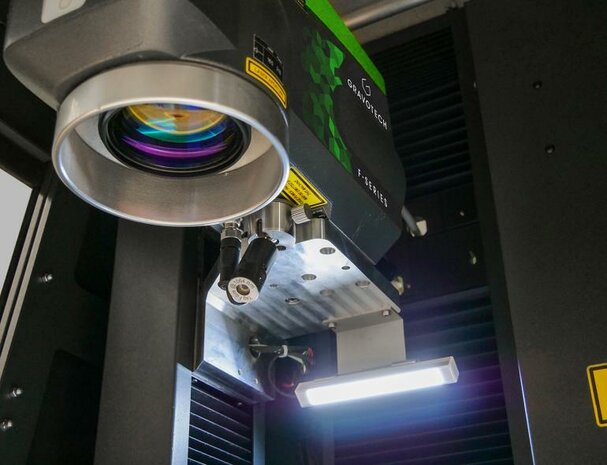

• Easily find the focal length thanks to the focusing diodes. Simply join the two laser spots by adjusting the laser height with the motorized axis.
• The automated laser cutter itself to the focal length at the start. You only have to enter the part height directly on the screen.
• Thanks to the simulation mode, the station shows you the exact positioning of your future marking directly on the part.

Batch Marking

Permanent Marking In The Production Cell
