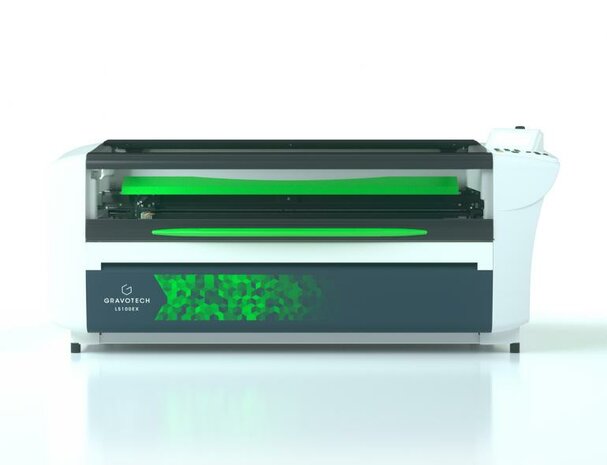

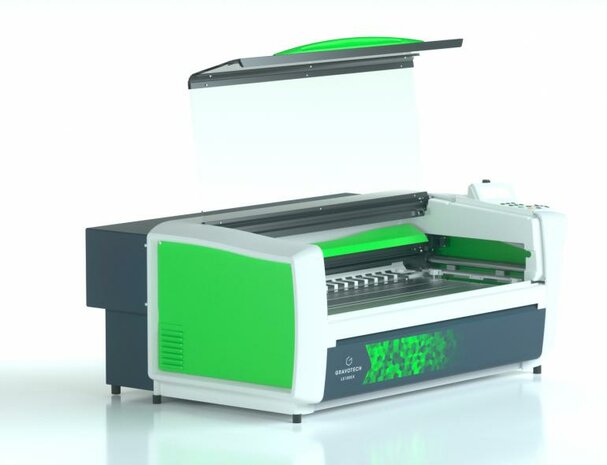

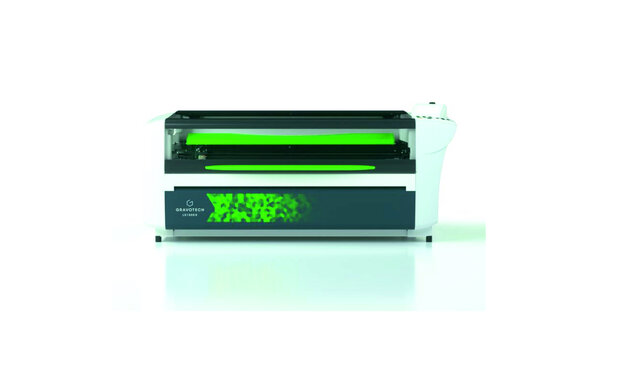

De Gravotech LS100 EX

• SIGN ENGRAVING AND CUTTING MACHINE
  With a working area of 610x305mm exactly matching ¼ sheet size, the LS100EX is a signage engraving and laser cutter above the rest1. Be it plastic, wood, metal, or glass, any signage material can be engraved and cut. This can be your favorite sign making machine, with a large range of consumables available with up to 2 color layers, for a contrasted and professional result.

• INDUSTRIAL LASER FOR SERIES PRODUCTION

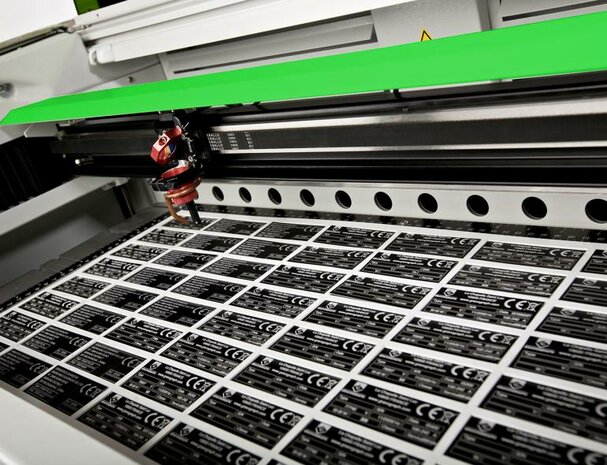

  The large dimension combined with a gantry laser technology makes the LS100 EX the perfect CO2 laser machine for small production series. Load your items or parts to be engraved, and create your engraving job with the Gravostyle software. Several industrial functions are available, such as the Matrix mode or automatic date stamp. Let your laser engraver do the hard work!

• 2 LASER SOURCES AVAILABLE
  CO2 and Fiber Laser performance mainly comes from matching the laser source to the material to engrave. A CO2 source will be perfect for plastics and organic materials such as wood, paper, rubber etc. A Fiber laser will be more appropriate for metals. The LS100 EX is available with a CO2 laser source or a Fiber laser source, to match all of your applications.

Technical Specifications

Max Z clearance
145mm - for large-item engraving.

Engraving modes
Raster and vector - for advanced engravers.

Laser classification
Class 1 fully secured laser with automatic stop when the door is opened.

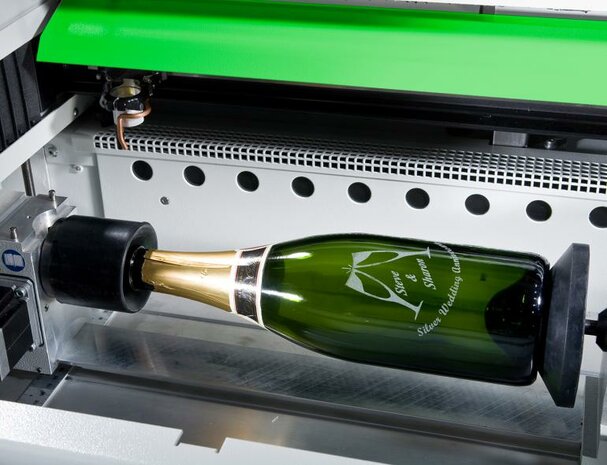

Optional cylindrical attachment to personalize glasses, bottles, and more.

Controlling Software
Gravostyle™ - unlimited engraving and cutting possibilities, pre-saved settings for Gravotech materials

General

Laser source
CO2, Fiber
Available power version
25W - 30W - 40W - 60W

Marking Capacity

Marking area max (l x w)
610 x 305 mm (24 x 12 in)
Available lenses
1.5'' - 2.0'' - 2.5'' - 3.5'' - 4.0''
Max object height
145 mm (5.7 in)
