- ENCLOSED CO2 LASER ENGRAVING MACHINE SUITABLE FOR BEGINNERS AND EXPERTS IN SIGNAGE
LS100 is the only CO2 laser engraving and laser cutter on the market made of one-piece aluminum chassis. It includes CAD/CAM software and an RF laser source.
- OUTSTANDING VALUE FOR A LASER MARKING MACHINE
The LS100 is a small laser engraver that is perfect for in store usage and customers enjoy seeing their purchases engraved while they wait. This laser marker can be used for many of your applications.
- SIMPLE WORKFLOW, MINIMAL OPERATOR TRAINING REQUIRED
Automatic touch sensing, embedded control dashboard, and backlit engraving table with a wide front-loading door are just a few features to make your job easier! Low operational noise allows you to comfortably use this laser engraving machine in retail stores, small shops, and residential areas.
Technical Specifications
Integrated air compressor to keep the lens clean and ensure high-quality engraving results.
Protect the focal lens by pushing the fumes towards the exhaust area and reduce flaming when cutting.
This also increases the life span of lenses and creates safer working conditions for the user.

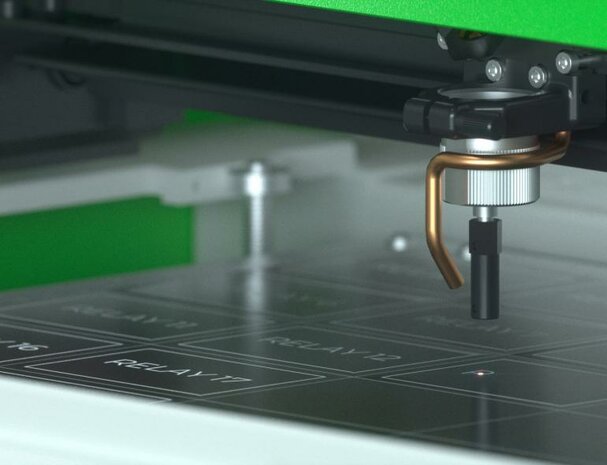

Autofocus: automatic vertical adjustment
Embedded dashboard allows modifying the job and fine-tune the settings.
Dedicated software
- Point and shoot: Easy positioning and job set-up.
- Print and cut: precisely cut printed products, without the need for additional materials.
- Multi-technology software, allowing to centralize designs settings, experience, and knowledge into a single work environment.
| |
LS100 |
| Laser Source |
CO2
|
| Power |
30W, 40W, 60W
|
| Max marking area |
460 x 305 mm
(18'' x 12'')
|
| Max. object weight |
15 kg (33.1 lbs)
|
| Laser safety classification |
Class 2
|
| Machine dimensions (L x W x H) |
775 x 725 x 450 mm
(30.5'' x 28.5'' x 17.7'')
|
| Max. object height |
145 mm (5.7'')
|
| Machine weight |
43 kg (94.8 lbs)
|
| Point & shoot |
Yes
|
| Automatic focus |
Yes
|
| Connection to computer |
USB
|
| Software |
Gravostyle™ (delivered with the machine) + compatible with Corel Draw, Adobe Illustrator, or any graphic software
|
| Beam diameter |
0.1 to 0.4 mm
(0.004'' to 0.016'')
|
| Noise level |
≤ 70 dB
|
| Operating Temperature |
10°C - 35°C (50°F - 95°F)
|
| Maximum speed |
2,54 m/s
(100 in/s)
|

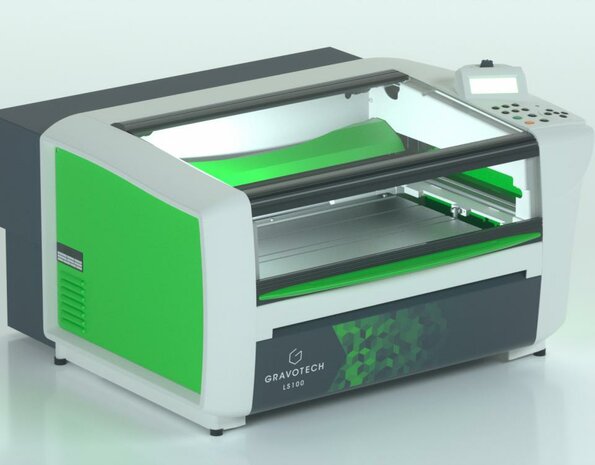

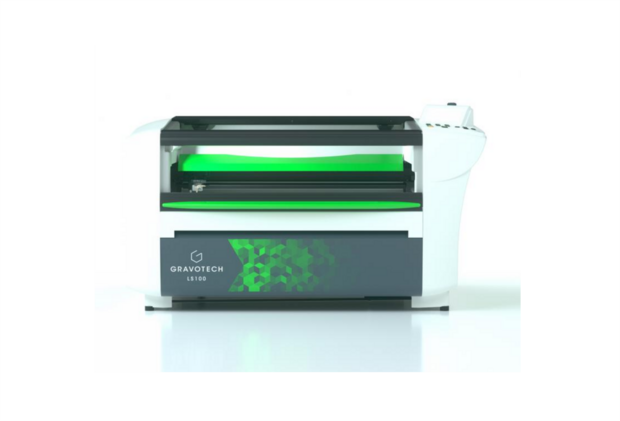

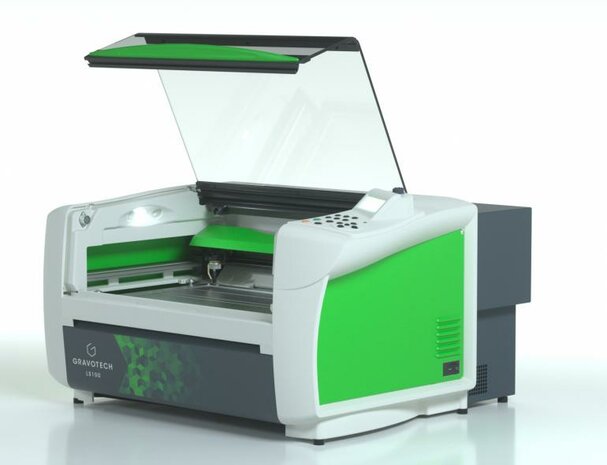

The LS100 is an automated, silent, and space-efficient laser cutting and engraving machine. No bulky and loud separate blower or compressor, the exhaust and air assist are integrated and triggered automatically. Place the items into the well-lit cabinet and front-loading door and let the laser marker detect their height for accurate positioning. All lasering parameters are saved in a material library for increased productivity.
Are you looking for a smaller engraving machine but still as versatile as the LS100? Take a look at our M40 rotary engraving machine!
The LS100 small laser engraver is available with Gravostyle, our unique dedicated software, to create and edit designs, vectorized logos and pictures, use specific fonts in every languages and alphabet, compose in Matrix mode. This software is also an advanced piloting tool for your LS100. This CO2 laser engraver can also be used with third party software.
The LS100 Energy is the only premium laser marking machine in this size. This is an great choice for first-time buyers or those on a reduced budget. This small laser engraver uses a different laser source that ensures the same cutting quality but with a slight reduction in engraving quality. This option is only available at Gravotech.
