DOT PIN STATION

Dot peen technology : Electromagnetic & pneumatic :

Marking area : 100 x 120 mm (3.94 x 4.72'')

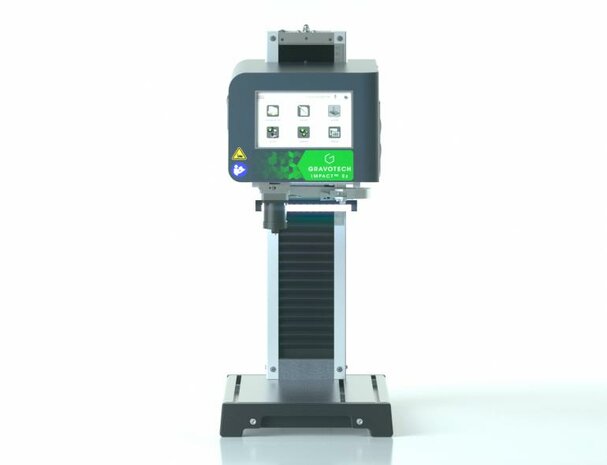

• TOUCH & MARK

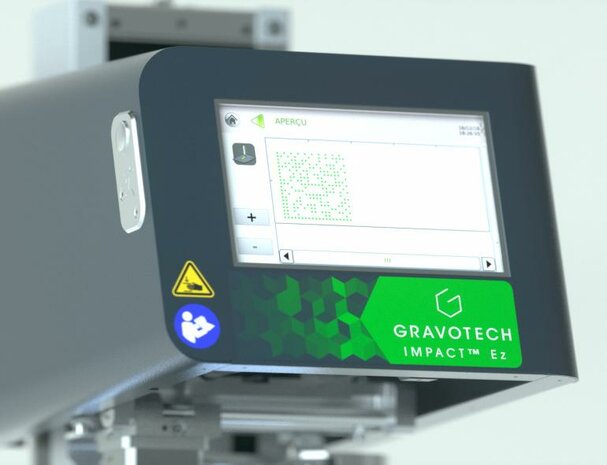

  The large color touchscreen and onboard control software make training a thing of the past. The intuitive system allows you to start marking text, logos and 2D codes straight away. Also metal plate engraving makes it the best engraving machine for metal. It makes the operator’s life easy and does not require a computer.

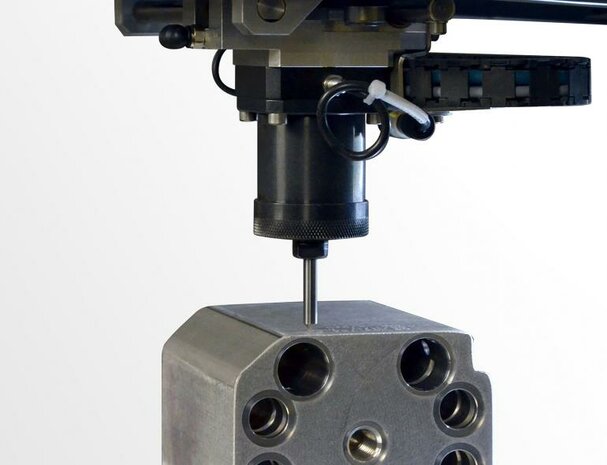

• I-SENSE DOT PEEN MARKING STATION
  The I-Sense function (Impact eZ m) detects the surface of the workpiece, automatically adjusts the height of the Z-axis and starts marking with no intervention on the part of the operator. Several adjustment modes are available: automatic mode (I-Sense), programmable mode and normal mode, which allows manual adjustment.

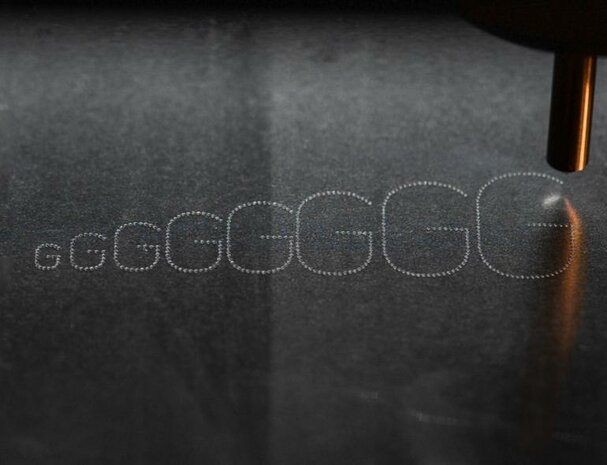

• DYNAMIC DOT CONTROL
  Obtain a perfect result every time with the IMPACT DDC™ (Dynamic Dot Control, on Impact m and eZ m) feature, a technology which enables automatic adjustment of point density according to the required size and depth of marking.

Technical Specifications

Available in two power sources
Pneumatic (p) - Requiring compressed air
Electromagnetic (m) - Electric version

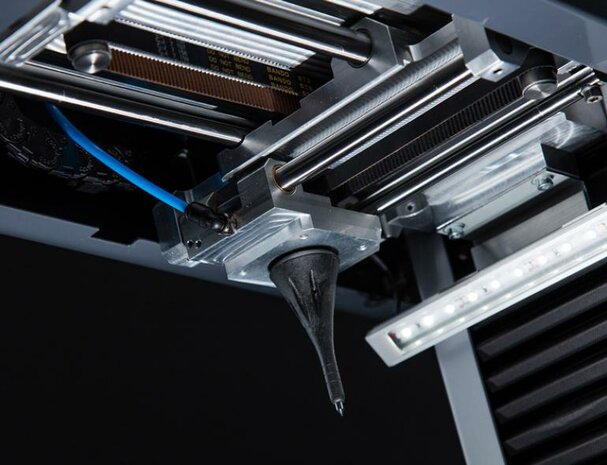

Available with manual or motorized Z-axis
Pneumatic (p eZ) and Electromagnetic (m eZ)

Multiple stylus available for all your marking environments

Accessories available

• Rotary devices
• Automatic plate feeders

Support USB barcode and 2D code readers for the read-and-mark-and-check process.

File transfer via USB stick or network connection (FTP)

The markings comply with international standards
Data Matrix™ ECC200 5x7 font DT05-89 ATA Spec 2000 UID SAE AS9132 NASA-STD-6002 MIL-STD-130 ISO/TS 16949 AIAG B-17, AIAG B-4 ISO/IEC 16022 AIM-DPM etc.

General

Technologies
Pneumatic
Electromagnatic
Software
Integrated traceability software with colour touchscreen

Marking Capacity

Marking area
100 x 120 mm (3.94 x 4.72 in)
Z axis stroke
300 mm (13 in)
Z axis type
m & p: Manual
eZ m & eZ p: Motorized & programmable

Engraving Machine for Metal & Plastics

The IMPACT dot peen engraver range, is a small engraving machine that makes it possible to perform high-quality marking on a large number of materials from, metal plate engraving (painted steel, aluminum, brass, iron, steel, raw, and anodized aluminum) to plastics (ABS, PA, PP).


Dot Peen Marking Station

From single part markings to small batches the IMPACT is loved for it size and versatility.

With a 11.81 in clearance and open architecture traceability on, one of the smallest parts to identification on larger heavier parts are available. No job is too big. Used by automotive, aerospace, medical, and from heavy and light industries, the Impact small engraving machine has become a favorite workstation.

Ready To Go

We took all of our experience working within industrial traceability and created the IMPACT for maximum flexibility,  when both marking requirements and parts to be marked are constantly changing.

The IMPACT was created to be the all in one, ready to go solution, with usability at the forefront and designed to be opened and ready to start marking immediately.
